Drive in Rack Type and Heavy Duty Scale Rack

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Quick Information

  • Brand Name: topeasy industry
  • Place of Origin: China
  • Model Number : TEL-0003

Description

Specifications of Drive in Rack Type and Heavy Duty Scale rack:

Upright  70*90*1.8/2.0,70*100*1.8/2.0
Arm  double arm, single arm
Top bar  24*36*1.5C
Diagonal bar  24*36*1.5C
Pallet size  800*1200,1000*1200,1000*1000,800*1000,and so on.
Pallet load capacity  500-2000kg
Pallet in deep  5-7 pallet
Pallet In height  4-6 pallet
Material  cold rolled Q235 steel



Application: Suitable for the goods of less kind and large quantity. It is widely used in the fields of cold warehouse, foods and tobacco, which needs a high cost of the storage space of the warehouse.
Product Details

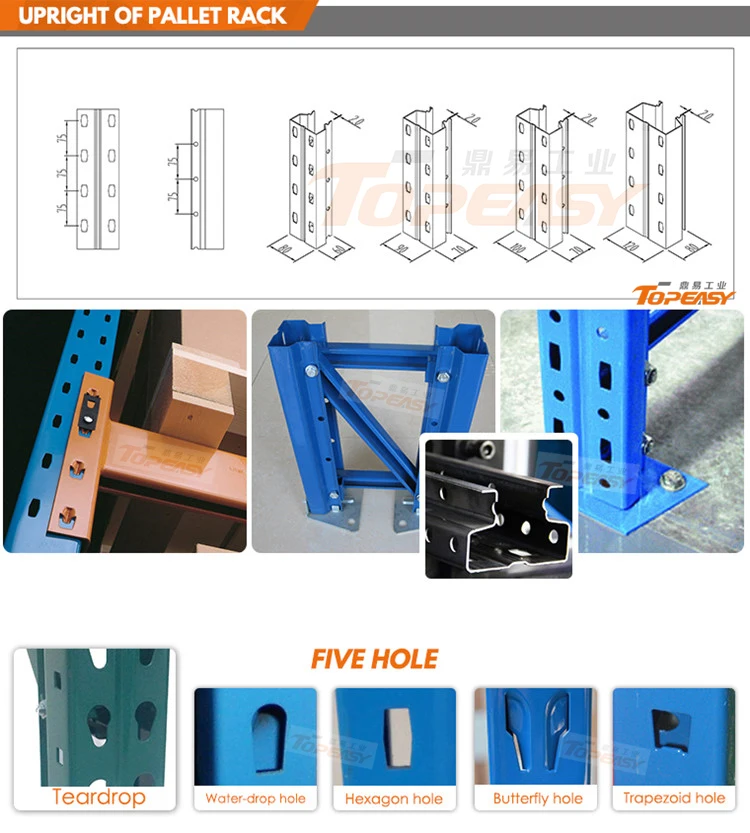

Frames
Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.


Arms
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.

Pallet Support Rails
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.

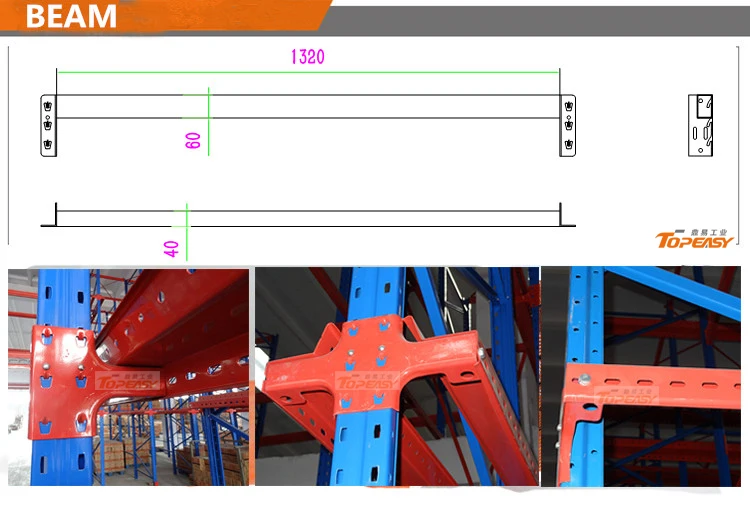

Top beams and top bracings
Top beams and top bracings are used to increase integrity and stability of the racking system.

Drive in Rack Type and Heavy Duty Scale rack

Drive in Rack Type and Heavy Duty Scale rack


Price

  • Delivery Port : Qingdao

Product Image

  • Drive in Rack Type and Heavy Duty Scale Rack image
